21' FLATSCAT

Specifications

Beam: 7' 6"

Bottom: 7'

Weight: 1650 lbs

Gunnel Height: 20"

Transom Height: 27"

Planing Distance: 10'

Take off depth: 6"

Minimum running depth: 3 ½"

Bow rise on take off: 5"

Boat Draft at Rest: 4 ½"

Boat Draft at Speeds: ½"

Maximum HP: 150

Recommended HP: 130-150

Fuel Capacity: 40 Gallon fuel tank

Standard Features

Unsinkable design and construction

All hand laminated fiberglass hull

Patented Catamaran Design

Self Bailing

Level flotation

Large front casting platform with waterproof hatches

Dual rear casting platform with waterproof hatches

Non-skid deck

Gel Coat Interior

3 box storage in front casting platform

Storage in rear casting platforms

Polystyrene foam floatation

Bow Eye

Stern Eyes

Heavy Duty Vinyl rub rails

Wiring conduit from console to bow

One way drain scuppers

Control Tube covers

Trolling Motor mount

Smooth dry catamaran ride

Center Console Standard Features

Large center console fiber glassed to deck

Aluminum welded console rail

Tinted windscreen with spoiler

Non skid fishing surface on top of console

Running lights

Fuel fill and fuel vent

40 Gallon fuel tank

Stainless steel steering wheel

Custom upholstered cushions for Ice chests

Large storage compartment with backrest cushion

Trailer Standard Features

Custom-built Aluminum Coastline trailer to fit boats contours

Drive on and off design

14" Tires with galvanized or aluminum wheels and axles

Enclosed wheel wells

Waterproof lights

Center mounted guide boards for foolproof loading

Swing up screw type dolly jack

E-Z lube buddy bearing system

Optional tandem or single axle available

Optional Items

Anodized Aluminum Wadefishing Step

Spare Tire with Mount for trailer

Leaning Post

Leaning Post with Storage

Elevated Ice Chest Cradle

Anodized Rod Holders on Leaning Post

Burn bar

Leaning Post with backrest

Due to the UNBELIEVABLE performance capabilities of Flats Cat boats, we have developed a comprehensive demo section to help educate future owners about Flats Cat. Please familiarize yourself by viewing the following performance demos and short videos. As UNBELIEVABLE as it may seem, Flats Cat boats do what we say they will do. We stand by our claims.

Performance

The water is then wedged or trapped in between the Cat Hulls by the patented reverse angle inside hull wall. When the water passes under the transom, a jet effect is formed compacting the water even more and aiding in forward motion.

Smooth Dry Ride

When a Flats Cat passes over the water, air is injected or rammed into the large bow entrance raising the boat up out of the water allowing the boat to ride on top of the waves and gently walk from side to side on the Cat Hulls, thus eliminating the pounding affect created by most mono Hulls. The seemingly flat hulls push water straight out away from the boat, far enough that spray cannot be drafted up the almost vertical sides, and into the boat. Since natural waves are uneven in their physical make up and do not roll evenly like a wake from a boat, the Cat Hulls encounter different waves at different intervals creating a side to side or walking motion. To put it simply, a mono hull in rough water is like jumping up and down on one foot and a catamaran is like walking smoothly on both feet.

Shallow Water Capabilities

The ram air affect which affords the Flats Cat to run smoothly across the top of the waves also serves another function when entering shallow water. As air passes under the bow and approaches the inside walls of the Cat Hulls, the water under the boat is compressed slightly and in turn rebounds up into the water channel of the twin hulls. It is here that the water comes in contact with the sub-hull. The sub-hull is a slightly downward curve about one third of the way back from the bow. The purpose of the sub hull is to purge most of the air out of the water that is flowing into the Cat Hulls. The water is then wedged or trapped in between the Cat Hulls by the patented reverse angle inside hull wall. When the water passes under the transom, a jet effect is formed compacting the water even more and aiding in forward motion. When the water exits the transom it explodes up into the lower unit and propeller of the outboard which allows for good handling characteristics, and more than adequate water pressure for engine cooling. At speeds exceeding 20 MPH the Flats Cat Hull has 1/2" draft, meaning the boat is on top of the water, not pushing through it. When entering water that is 7" or less in depth, the water is compacted between the hull and the bottom creating a lifting effect which raises the boat to about 1/2" plus draft. This means that the keel-less Flats Cat will not hit sub surface strata while there is any water below the boat at speed. However, when equipped with a tilt and trim engine and a standard 5" Jack Plate, skeg drag will occur in about 3 1/2" of water, signaling the boat operator to seek deeper water. This is a built-in safety factor for shallow water running, which has been well received and appreciated by our boat owners.

When a Flats Cat passes over the water, air is injected or rammed into the large bow entrance raising the boat up out of the water allowing the boat to ride on top of the waves and gently walk from side to side on the Cat Hulls, thus eliminating the pounding affect created by most mono Hulls. The seemingly flat hulls push water straight out away from the boat, far enough that spray cannot be drafted up the almost vertical sides, and into the boat. Since natural waves are uneven in their physical make up and do not roll evenly like a wake from a boat, the Cat Hulls encounter different waves at different intervals creating a side to side or walking motion. To put it simply, a mono hull in rough water is like jumping up and down on one foot and a catamaran is like walking smoothly on both feet.

Stability

Catamaran Boats have always been known to be very stable while sitting still on the water or moving at speeds, simply because you have 2 hulls. One hull enhances the other, meaning that as one hull is raised or lowered due to water movement, the weight versus the flotation of either hull are trying to stabilize each other. Cat Hulls displace only about 1/3 of their weight which enables the boat to run across the top of the water - not through it.

During extreme chop conditions, the sharp corners of the Flats®Cat act like the keel of a V-bottom hull to disipate the energy of the waves for a smooth dry ride.

Polability

Water flows through the Cat Hulls helping to eliminate drag, which makes for very easy poling. With the absence of a keel, there is no veering or cutting from side to side.

Shallow Water Shutdown

It is all boat owners' greatest fear to run aground in shallow water or to be left in shallow water due to tide flow. The elliptical shape of the Flats Cat Twin Hulls allows very little bottom contact when sitting in below draft level water. The hull shape also discourages any suction to occur, and in most cases, is easily pushed into deeper water.

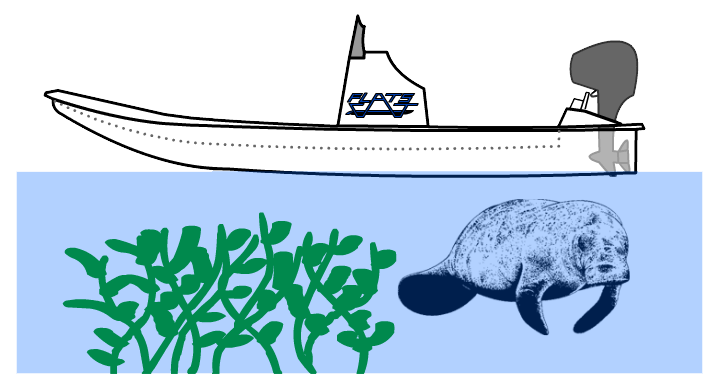

Environmental Impact

Due to the fact that our outboards are elevated so high on raised transoms and power lifts, very little of the motor or propeller protrudes below the bottom of the hulls. This extreme height makes a Flats Cat boat the least likely water craft to do harm to sub surface strata or aquatic marine life.
